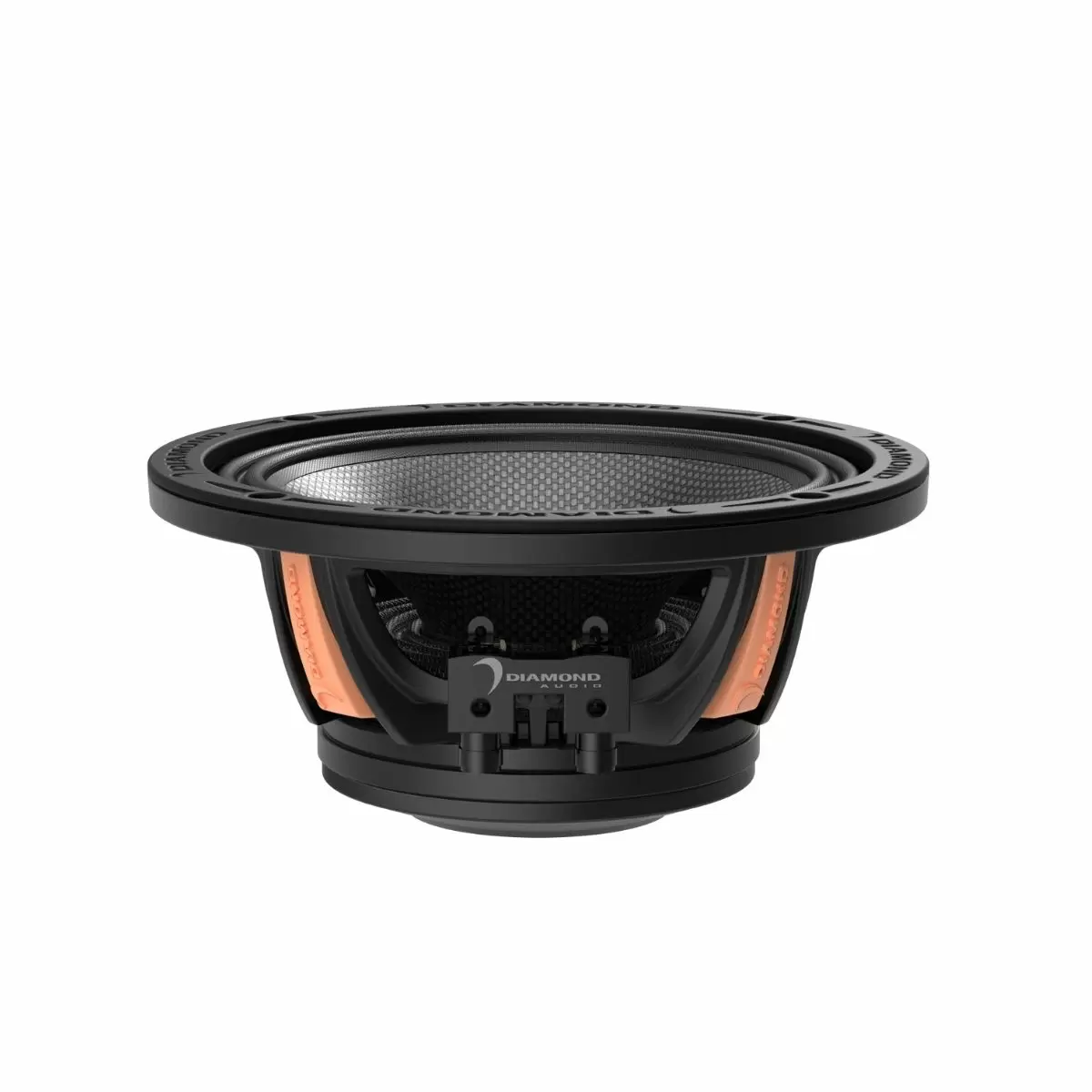

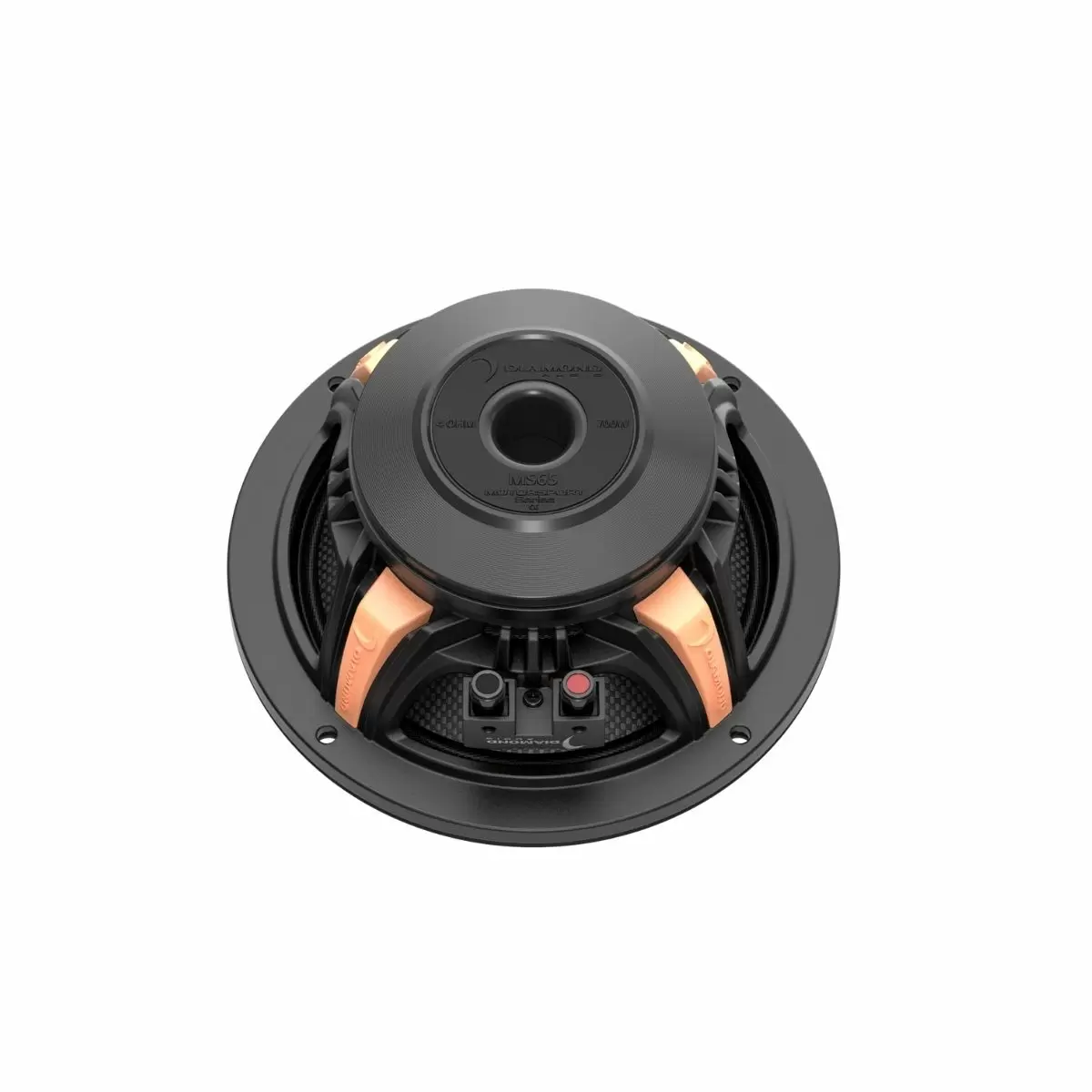

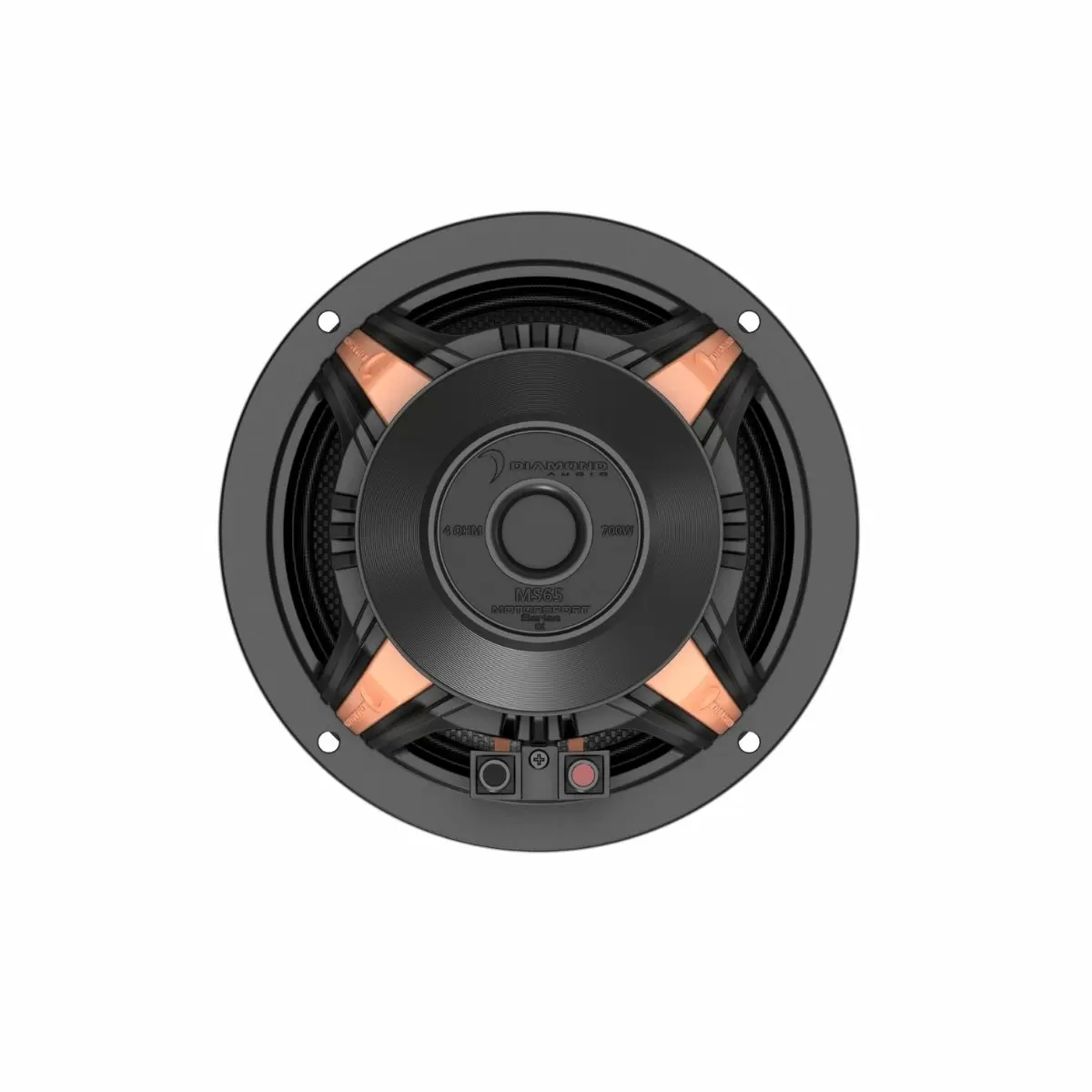

DIAMOND AUDIO - 300 Watt RMS - NEO 6.5" Motorsport High Output Neo Midrange

Features:

• 300 W RMS/600W MAX Power Handling
• Sensitivity: 94dB 1W/M
• Frequency Response: 100Hz - 13kHz
• Nominal Impedance: 4 ohm
• Mounting Depth: 2.77” (70.5 mm)
• Cut-out Diameter: 5.78” (147 mm)
• Over-All Diameter: 6.65” (169 mm)
• Over-All Height: 3.14” (79.7 mm)
• Heavy Duty Industrial Cast Aluminium Basket
• Waterproof Black DUPONT™ Kevlar Cone
• Neodymium Magnet Motor Structure
• US manufactured 2” Black High Temperature Coated Voice Coil



Speaker Size	6.5”
Nominal Diameter (inch/mm)	6.654" (169mm)
Description	6.5" Neodymium Mid Range Speaker
Nominal Impedance (ohms)	4Ω
RMS Power Rating	300W
Max Power Rating	600W
Frequency Response	90Hz-10kHz
Voice Coil Diameter (inch/mm)	2"
Power Handling (RMS/Peak)	300W/600W
SPL (db)	94 dB
Re (Ω)[series]	3.2
Qms	9.892
Qes	0.629
Qts	0.592
Fs-Free Air Resonance (Hz)	120
Vas (Liter)	2.97
Cms (mm/N)	0.105
Mms (g)	16.4
Sd (cm²)	0.0141
BL (T*M)	8.209
Xmax - Inch(mm)	1.2
Pwr (W) NOM/MAX	300/600
Cut-out Diameter	5.78” (147 mm)
Over-All Diameter	6.65” (169 mm)
Over-All Height	3.14” (79.7 mm)
Total Diameter	6.654'' (169mm)
Mounting Diameter (inch/mm)	5.787'' (147mm)
Mounting Depth	2.776'' (70.5mm)
Total Depth	3.138'' (79.7mm)
Grille	NO
