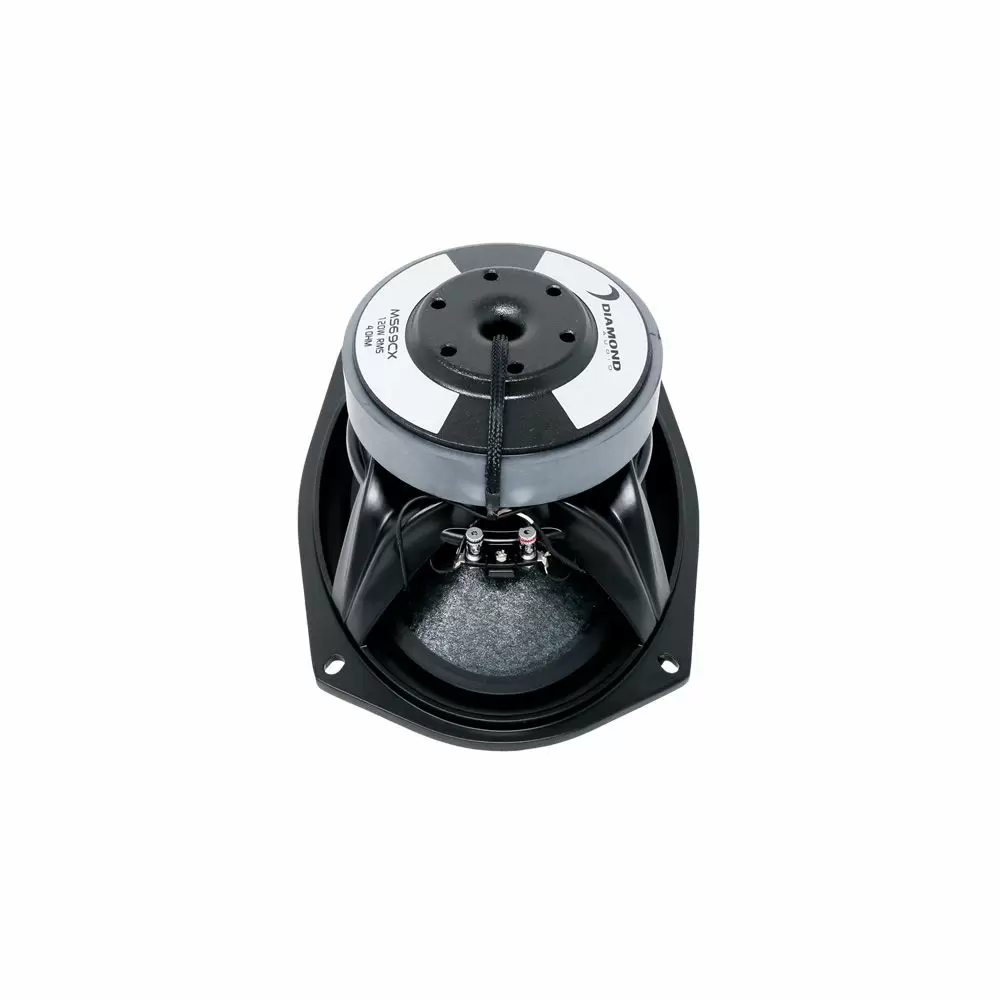

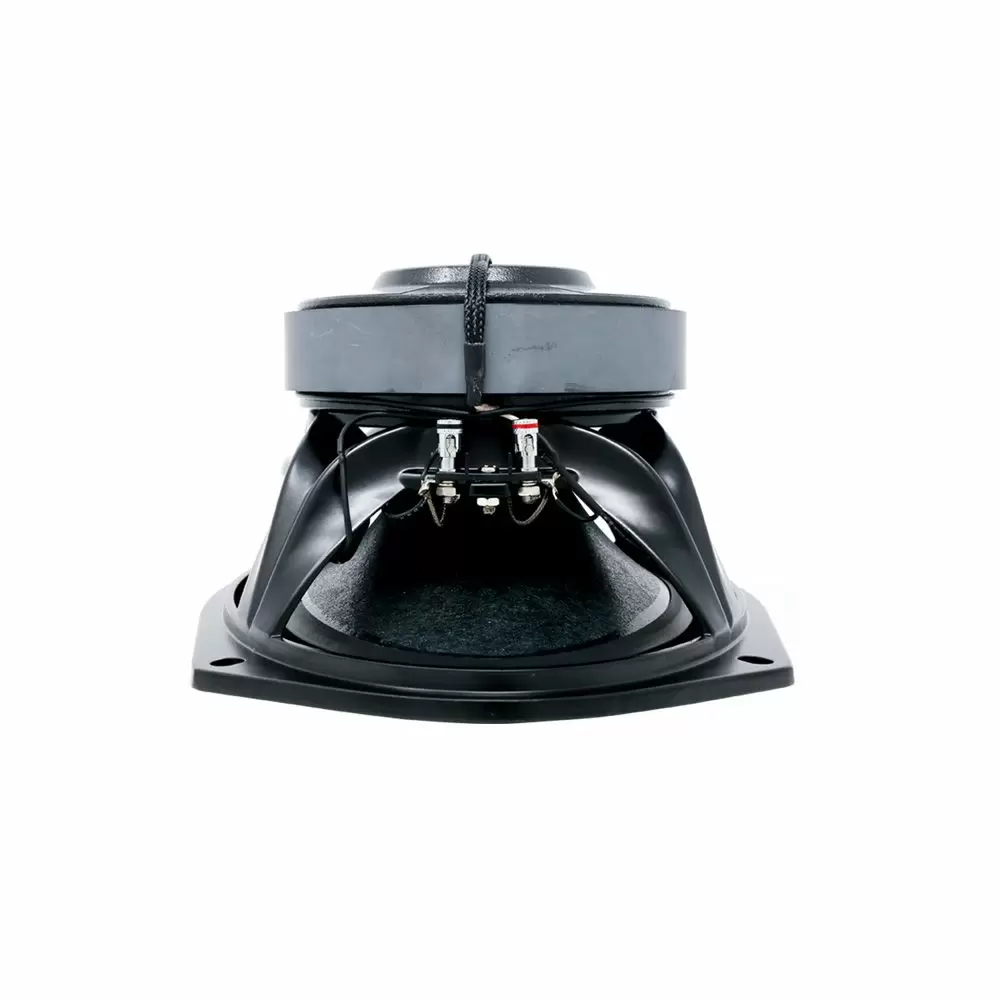

DIAMOND AUDIO CX 2-way 6"X9" High-Output CoaxSub, 125W RMS Power Handling (2 & 4 OHM)

Features:

• Power Rating: 125W RMS
• Nominal Impedance: 4 ohm
• Sensitivity: 93.5 dB 1W/1M
• Mounting Depth: 3.81” / 97mm
• Mounting Diameter: 5.98” x 8.85” / 152mm x 225mm
• Manufactured to IPx65 Marine Grade Compliant Specifications
• 1" High Output Titanium Dome Tweeter
• UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
• 12dB Bessel Crossover Network
• Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
• T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling
• High-Temperature Cast Aluminum Basket

Speaker Size	6"X9"
Nominal Diameter (inch/mm)	6 X 9 (9.5”/241.3mm)
Description	2-Way Concentric 6"X9" CoaXSub
Nominal Impedance (ohms)	2&4Ω
RMS Power Rating	125W
Max Power Rating	500W
Frequency Response	45-23kHz
Voice Coil Diameter (inch/mm)	1.4" (35.5mm)
Power Handling (RMS/Peak)	125/500
Types	2-way
Qts	0.783
Fs-Free Air Resonance (Hz)	46Hz
Vas (Liter)	0.159cu. ft (4.5Lt)
Xmax - Inch(mm)	0.16" (4mm)
Sensitivity (1W/1M)	90.5dB
Sensitivity (2.83V/1M)	93.5dB
Mounting Diameter (inch/mm)	8.875″ (225.5mm) x 6.125″ (155.6mm)
Mounting Depth	3.875″ (98.425mm)
Grille	Yes
